What is the California Bearing Ratio Test?

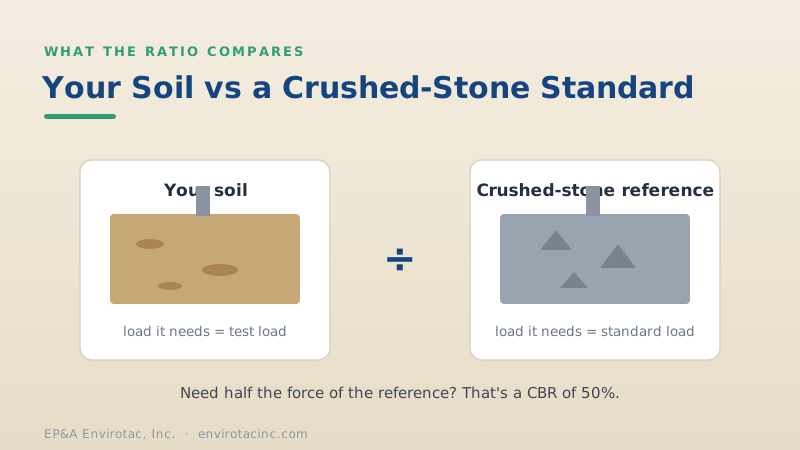

The California Bearing Ratio Test is a clever way to measure how well soil can hold up under pressure. Here’s the deal: Engineers grab some soil and see how much oomph it takes to push a metal rod into it. Then, they compare that to how hard it is to push the same rod into some special crushed rocks. This tells them if the soil is strong enough to build on.

For example, if the soil needs half as much force as the standard rock, it would have a CBR value of 50%.

The CBR is defined as the ratio of the bearing load that penetrates a material to a specific depth compared with the load that causes the same penetration in crushed stone. This test measures neither Stiffness Modulus nor Shear Strength directly but gives a combined measure of both. It is expressed as a percentage:

Why is the CBR Test So Important?

Think of the California Bearing Ratio Test as a crystal ball for construction projects. It helps engineers:

• Design roads that won’t turn into roller coasters after a few years.
• Figure out how thick to make pavements so they don’t crack under pressure.
• Choose the right materials for construction, saving time and money.
• Predict how well the ground will hold up in different weather conditions.
• Avoid costly repairs and maintenance in the future.

Picture building a highway on squishy, swampy ground without doing a CBR test first. It might look fine at first, but you don’t want to have a road that’s bumpier than a roller coaster! The California Bearing Ratio Test acts as a safety net, catching problems before they trouble everyone.

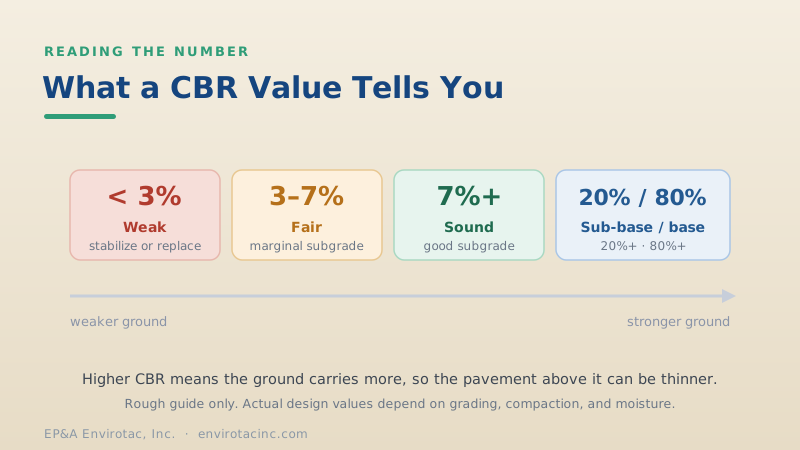

The CBR test gives a result between 0 and 100%. This number tells us how strong the soil is compared to a standard material. Engineers use this important value not only to judge soil strength but also to estimate how thick they should make roads and other paved surfaces. It’s like a soil strength score that helps builders make smart decisions about construction.

CBR Values by Soil Type

• Clay: Typically has a CBR value of around 2%.
• Sand: Ranges from 7% (poorly graded) to 10% (well graded).
• Well-Graded Sandy Gravel: Approximately 15%.
• Clayey Sand: Between 5% and 20%.
• Silty Gravel: Ranges from 20% to 60%.
• Gravel: Varies from 30% to 60% (poorly graded) and can reach up to 80% for well-graded gravel.

How Does the CBR Test Work? A Step-by-Step Guide

Let’s break down the California Bearing Ratio Test into bite-sized steps:

• Soil Sample Collection: Engineers collect soil from the construction site. They’re like soil detectives, making sure they get samples from different depths and locations.
• Sample Preparation: The soil is packed into special molds, kind of like making a sand castle in a bucket. They use a specific amount of force to pack it, ensuring all samples are prepared the same way.
• Soaking: Here’s where it gets interesting. The samples are soaked in water for four whole days! This mimics what happens during rainy seasons. Soil isn’t just plain dirt—it has different qualities! Some soils soak up water fast, like a sponge, while others stay hard and solid, almost like rock. These different properties affect how suitable the ground is for construction.
• The Soil Squeeze: In the CBR test’s main event, dubbed “The Soil Squeeze,” engineers first give the dirt a good soak. Then, they use a special gizmo to push a metal stick (fancy name: penetration piston) into the wet soil. This shows how the ground might act when it’s soggy and squished, just like it would be under a heavy building.
• The Big Squeeze: Once the soil is sufficiently soaked, it’s time for the main event. A specialized machine drives a metal rod—called a penetration piston—into the soil sample, assessing how well the ground resists pressure. It’s like pressing a straw into a thick milkshake, but with much more force!
• Measuring the Force: As the rod is forced deeper into the soil, the machine meticulously measures the amount of force required at various depths. Standard depths include 2.5 mm, which requires around 1,370 kgf (13.44 kN) of force, and 5.0 mm, which needs approximately 2,055 kgf (20.15 kN).
• Crunching the Numbers: The gathered force measurements are then compared against those required to penetrate standard crushed rock. This comparison helps engineers evaluate how well the soil holds up under pressure, ultimately guiding construction decisions.
• Moisture Check: Engineers also measure how much water is in the soil. This is super important because wet soil behaves differently than dry soil.

Equipment: The CBR Test Toolbox

To perform the California Bearing Ratio Test, engineers use some cool gadgets:

• Load Frames: These are big, sturdy machines that apply pressure to the soil. Think of them as super-strong robot arms.
• Penetration Pistons: These are the metal rods pushed into the soil. They come in different sizes for different tests. The CBR test is performed using a cylindrical plunger with a diameter of 50 mm, penetrating the soil at a rate of 1.25 mm/min.
• Molds: Special containers that hold the soil samples. They’re usually made of tough metal and have specific dimensions.
• Moisture Testing Tools: These help measure how wet the soil is. They might use special ovens to dry out soil samples and see how much water evaporates.
• Compaction Tools: These help pack the soil into the molds evenly, ensuring fair tests.

Lab vs. Field CBR Testing: The Showdown

There are two main ways to do the California Bearing Ratio test:

• In the Laboratory: This is like testing soil in a science lab. It’s super accurate but takes more time. Engineers can control everything, from how the soil is packed to the exact moisture content.
• In the Field: This is testing right at the construction site. Field testing is quicker and gives a real-world picture, but it’s not as precise as lab tests. Engineers use portable equipment and must deal with whatever weather Mother Nature throws at them.

Smart engineers often use both methods. They might do quick field tests to get a general idea, then follow up with detailed lab tests for the final design.

Challenges in CBR Testing: It’s Not Always Smooth Sailing

Even though the California Bearing Ratio Test is really useful, it can be tricky sometimes:

• Soil Variability: Soil can change a lot, even over short distances. One spot might be strong clay, while a few feet away, it’s loose sand.
• Weather Effects: Rain, heat, and cold can all influence test results. A sample tested on a hot, dry day might give different results than one tested during a rainy week.
• Lab vs. Field Differences: Sometimes, the lab tests and field tests don’t match up. This can be a real puzzle for engineers to solve!
• Calibration Issues: The testing equipment needs to be spot-on and accurate. Even small errors can lead to big problems down the road (literally!).

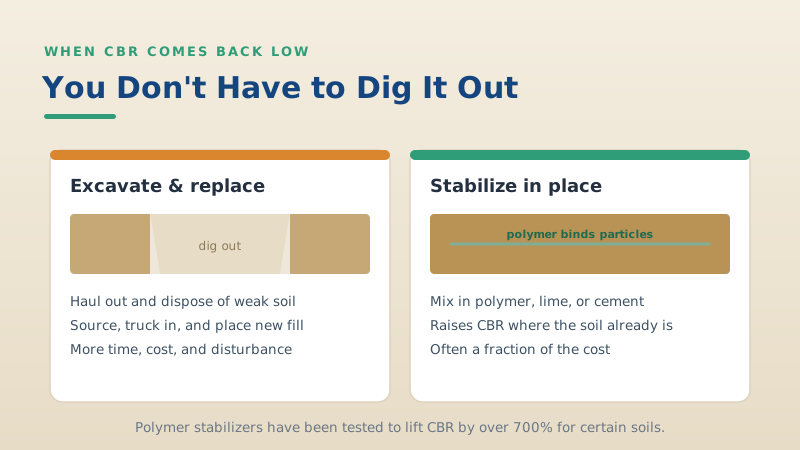

To tackle these challenges, engineers have some tricks up their sleeves. They might use chemical stabilization to improve soil strength. This involves mixing in materials like lime, cement, or soil stabilization polymers to boost the soil’s CBR value. It’s like giving the soil a strength-training workout!

For environmental safety, using environmentally friendly soil stabilization solutions is better than using traditional methods since the former are cost-effective and require less maintenance than the latter. They tend to increase the CBR in a better way; for example, our soil stabilization products have been tested to increase the CBR by over 700% for certain soils.

Innovations: The Future of CBR Testing

Technology is making CBR testing even cooler:

• AI and Machine Learning: Computers are getting smart enough to analyze soil data and predict CBR values based on other soil properties.
• Geotechnical Modeling Software: These programs can create virtual models of construction sites, helping engineers plan better.
• Non-Destructive Testing: Some new tools can estimate CBR values without even digging up the soil! They use things like sound waves or electromagnetic signals.
• Automated Testing Machines: These can run CBR tests with minimal human input, reducing errors and speeding up the process.

The Big Picture: Why CBR Testing Matters for Strong Infrastructure

Good CBR testing is the unsung hero of construction. It leads to:

• Roads that stay smooth and pothole-free for years
• Airports where planes can land safely, even with heavy loads
• Buildings that stand tall without sinking or tilting
• Bridges that can handle heavy traffic without wearing out quickly

By doing these super-thorough CBR tests, engineers can design stuff that’s not just strong but also clever and doesn’t waste money. It’s all about building smart, not just making things huge for no reason!

Wrapping Up: The Soil Beneath Our Feet

Next time you’re riding on a smooth highway or watching big planes take off from a huge runway, think about this: The California Bearing Ratio Test played a super important part in making all of that possible. This test, which seems simple but is actually really powerful, helps make sure that the ground under our feet is strong enough to hold up all the amazing things we build on top of it.

Want to dig deeper? Check out our articles on road dust control and Chemical stabilization of soil. These methods can help improve CBR values and make construction projects even more robust. Keep in mind that when it comes to constructing our world, understanding what’s under the surface is just as vital as what we put on top!
